Shrink Tunnels and Shrink Systems

Dimensionally Stable Protectioneven during Transport

Professional Shrink Tunnels from Zappe
- Your customised shrink line

Shrink tunnels from Zappe can be used in a variety of ways for shrinking films around packages, shrinking tubes onto different objects such as rubber parts, batteries, bottles, pipes or fluorescent lamps.

Shrink tunnels from Zappe can be used in a variety of ways for shrinking films around packages, shrinking tubes onto different objects such as rubber parts, batteries, bottles, pipes or fluorescent lamps. A shrink tunnel from Zappe is also the right choice for tempering plastics and drying objects of various kinds. In combination with one of our bundle packers, L-sealers or in combination with your existing packaging system, you benefit from the flexibility and individual features of the Zappe shrink tunnels.

Inquire now

VT 415 C.png

Shrink Tunnels in every Dimension and Speed - Zappe can handle it

We are usually flexible when it comes to the specific equipment of your shrink plant. Whether you mainly pack and shrink small goods in film, or whether you need high passage heights up to 1,000 mm and widths up to 2,800 mm; whether a low belt speed of 0.1 m/min meets your requirements or you need a high speed of up to 60 m/min - we can handle it!

The heating capacity of your Zappe shrink tunnel is also variable – we are completely geared to the requirements of your workflow. As well as to the entire equipment of your shrink plant. First of all, you choose one of the basic models: entry-level, basic or professional. In addition to the extensive basic equipment, we will then advise you according to your requirements as to which optional features we can use to optimally adapt your shrink tunnel to your workflows.

Do you have particularly tricky tasks in your packaging process?

Challenge accepted – contact us!

Let us advise you

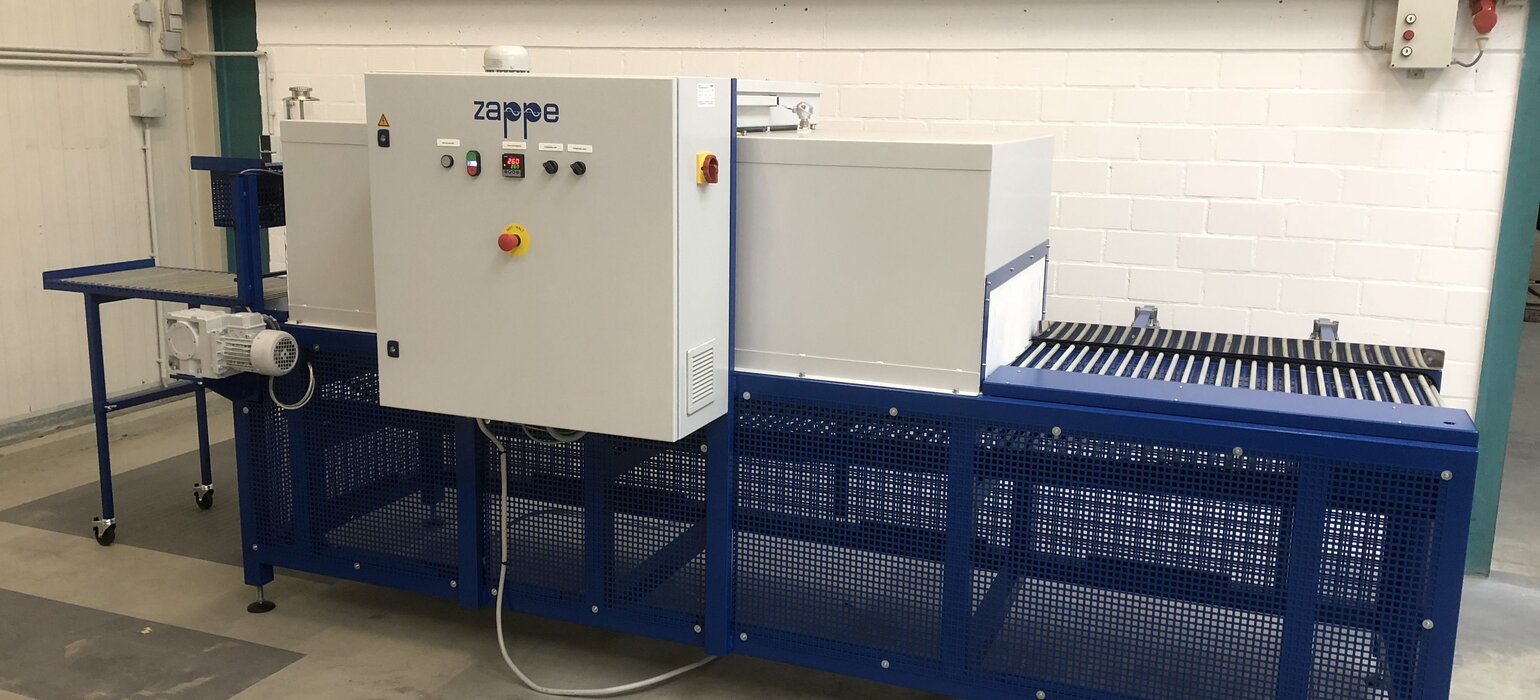

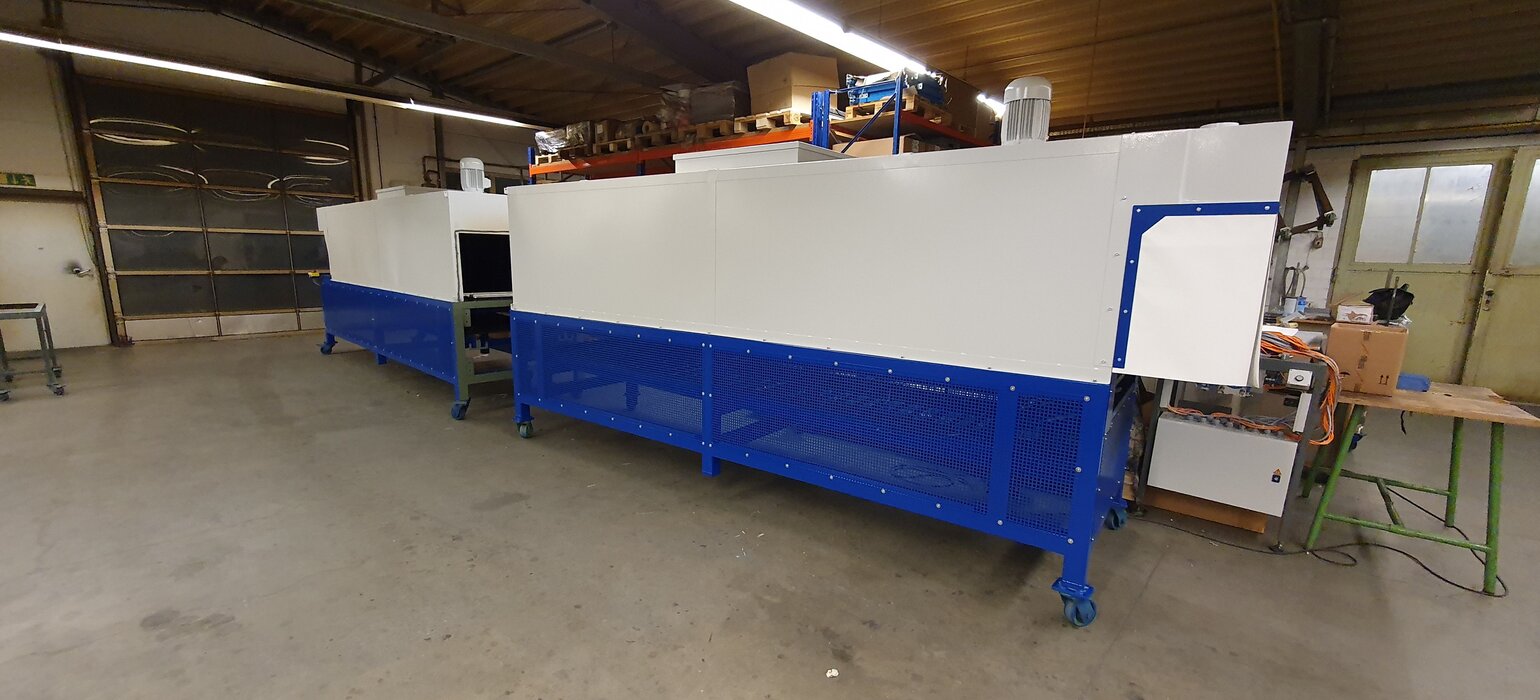

Shrink Tunnel Pro

The professional version as a high-speed shrink tunnel enables theshrinkage of various products – even of very heavy or long products, our tunnel provides you with an excellent shrinkage result. Two separate, upper and lower heaters each enable optimal shrinkage results and the highest possible temperature accuracy (up to +/- 1 ° C in the entire tunnel chamber).

Machine-type: VT – HS

  • Continuously variable regulation of the conveyor belt speed by means of frequency converter
  • Energy-saving hot air circulation
  • Electronic regulation of the shrinkage temperature with wear-free solid state relay technology
  • Display of the setpoint and actual temperature
  • Removable heating coil for service purposes
  • Extended tunnel bonnet
  • Tunnel bonnet with stronger thermal insulation for energy saving

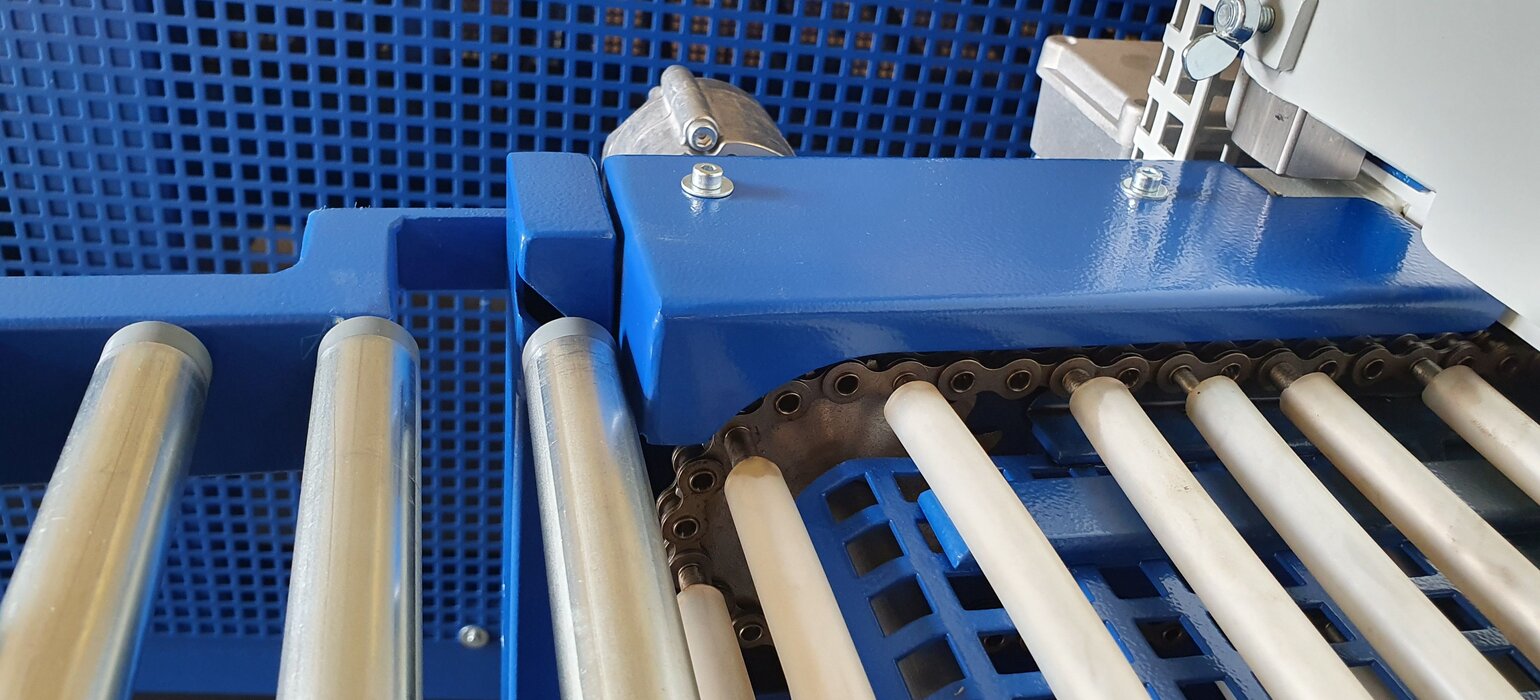

  • Shrink tunnel in heavy-duty design, i.e. reinforced drive of the conveyor chain with three-phase geared motor, conveyor chain with double breaking load, chain rods in reinforced design with support tube covered with silicone or glass fibre material
  • Adjustment of the air volume distribution at the top / side / bottom, as well as the blowing direction of the side air for optimal shrinkage results
  • Attached 1 m long run-out roller conveyor

Additional equipment

  • Versions with higher or lower throughput speeds (below 1 m/min or up to approx. 65 m/min)
  • Additional heating capacity (up to 70 kW)
  • Process or heating ovens
  • Infrared ovens
  • Rotating support bars
  • Automatic chain lubricator with drip tray
  • Lateral pressure brushes
  • Automatic tracking
  • Weekly timer
  • Over-temperature monitoring
  • Cooling blowers
  • Teflon grid belt

Quick Shrink

The Entry-level "QUICK-SHRINK" Model – versatile and reliable.

The footprint of only 0.8 x 0.7 m plus run-out slide or run-out track isparticularly space-saving.The entry-level model is already a real all-rounder with a belt speed of up to 7m / min. and a heating power of 4 Kw. Equip "QUICK-SHRINK" according to your ideas with a teflon grid belt, a one-meter roll-out track or a cooling blower

Machine-type: Quick Shrink

  • Shrink Tunnel with energy-saving forced air heatin
  • Continuously adjustable shrinkage temperature with thermostat control
  • Bar chain conveyor belt with continuously adjustable conveyor belt speed
  • Attached discharge chute
  • Atanding on lockable swivel castors

Additional equipment

  • Outfeed roller conveyor
  • Rotating support bars of the conveyor chain
  • Teflon grid belt
  • Electronic control of the shrinkage temperature
  • Approx. 400 mm extended infeed conveyor belt
  • Approx. 1000 mm extended outfeed conveyor for cooling the shrunk blanks
  • Cooling blowers
